Just pick your color.
We did the rest.

The 1stStepSolar 4 panel (760 W DC) kit contains everything needed to mount this “solar appliance” on an asphalt shingled roof. Everything. It includes panels, our no-tape-measure-needed mounting system, microinverter, cord, and electricity production monitor. Attach the roof brackets, hang the panels, and plug it in. You are making power. Curious as to how much power you are making? Just plug in the monitor --anywhere in the house (it communicates over house wiring). Want to show your friends your electricity production? Download the free app.

Black 760W 4 Panel DIY Kit

Silver 760W 4 Panel DIY Kit

Panels

Our panels are 190W 36-Cell Panels. Using monocrystalline module cells and 5 busbar technology, these are some of the highest efficiency panels on the market.

A lightweight aluminum frame and tempered glass keeps them strong while maintaining a managable 26lbs. The panels come in black or silver with a 10-year performance warranty.

Microinverter

The microinverter plugs directly into the panels and converts the DC power produced by the panels into AC power for your home to use. This kit comes standard with a 25 ft extension cord & 120V 3-prong plug

Phone App

Watch your roof make electricity from anywhere - a great conversation starter at any dinner party.

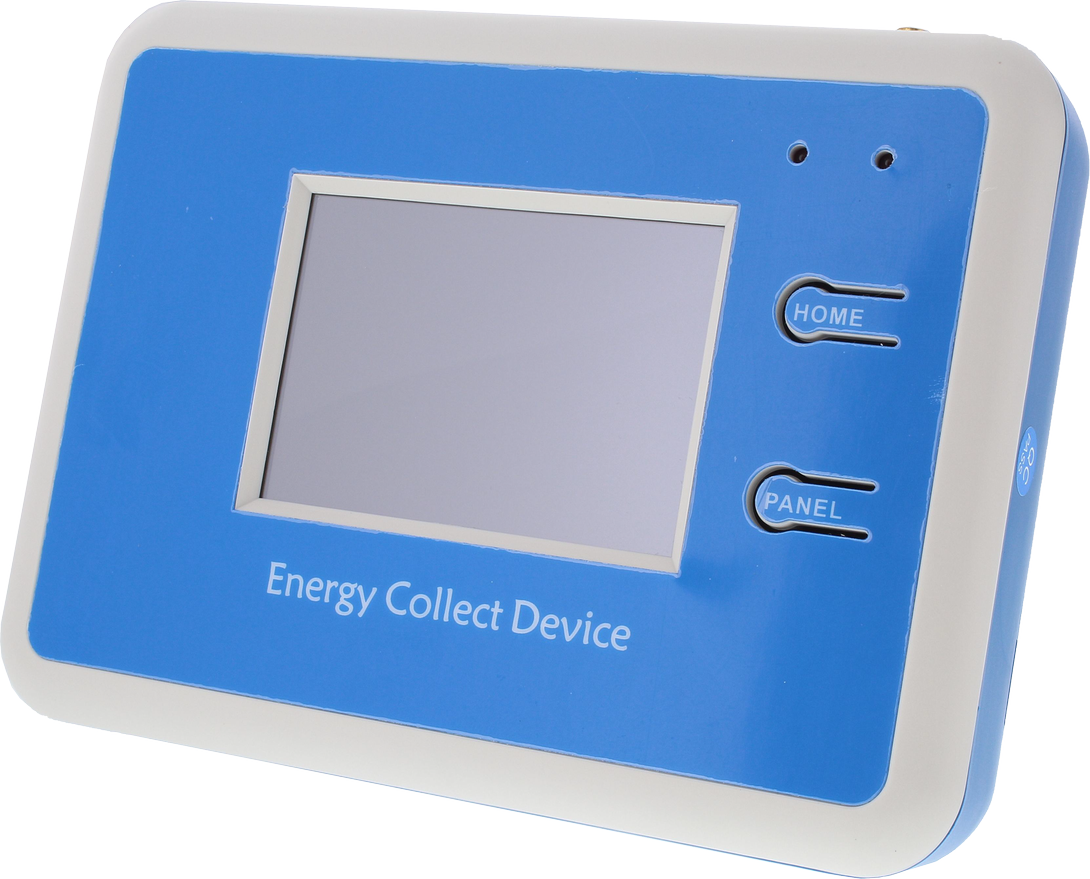

Monitor

The monitor is the information gateway for the microinverters. The unit collects module performance data and uploads solar production to the cloud. Watch your solar production with a smartphone or computer.

Kit Parts

Mounts

The mounts attach directly to the roof deck (no need to find your rafters). The mount seals tight to the roof surface with butyl mastic, and the screws use a watertight washer for a second layer of sealing.

The hooks clamp to the panels, then the panels just slide into place.

Panels

The panels are 190W 36 Cell Panels. Using a monocrystalline module cells and 5 busbar technology they are one of the highest effiecty panels per cell on the market.

A lightweight aluminum frame and tempered glass keeps them strong while maintaining a managable 26lbs. The panels come in black or silver with a 10-year performance warranty.

Microinverter

The microinverter plugs directly into the panels' and changes the panels DC power to AC power for your home use. This kit comes standard with a 25 ft extension cord with a 120 V plug 3 prong plug

Mounts

The mounts attach directly to the roof deck (no need to finding rafters). The mount seals tight to the roof surface with butyl mastic and the screw uses a watertight washer for a second layer of sealing.

The hooks are clamped to the panels and drop into place.

Phone App

Watch your roof make electricity from anywhere. The perfect conversation starter at dinner parties.

Monitor

The monitor is the information gateway for the microinverters. The unit collects module performance data and uploads solar production to the cloud. Watch your solar production with a smartphone or computer.

Kit Parts

4x     190W Solar Panels (36-Cell) Black or Silver

10x   Roof Base Mounts + Screws and Sealant

16x   Panel Clamp-on Hooks

2x     DC Wiring Extensions

         Cardboard Mounting Template

         600W Microinverter + Mount

         AC Wiring (25ft)​+ Plug

         Microinverter Monitor*

         Roof Pass-through Box

         DC Disconnect Tool

         1/2'' Wrench

         1/4" Nut Driver

*Not included in expansion kit

Kit Contents

Solar Panel

Brand: Solarhome

Max Power: 190 Watts
Width: 26 3/4"
Height: 58 1/4"
Depth: 1  1/2"

Weight: 26.5 lbs
Power Performance Warranty: >90% after 15 years

Microinverter

Brand: Deye

Maximum Power: 500W
Peak Efficiency: 96.5%
Waterproof Rating: IP67
Connection Type: MC4

Packaging

Total Weight (1 kit): 120 lbs?

Panel box Dimensions: 63" x 28" x 3"

Accessories Pack dimensions: 18" x 12" x 10"

Technical Specs​

What's the difference between the "Starter Kit" and the "Expansion Kit"?

Both kits enable solar to power your house right out of the box.

The only difference between the two is that the "Starter Kit" has a power monitor included as well as a 25 ft cord extension.

The reason for this is that a single power monitor can monitor up to 30 microinverters. (15 kWh!)
